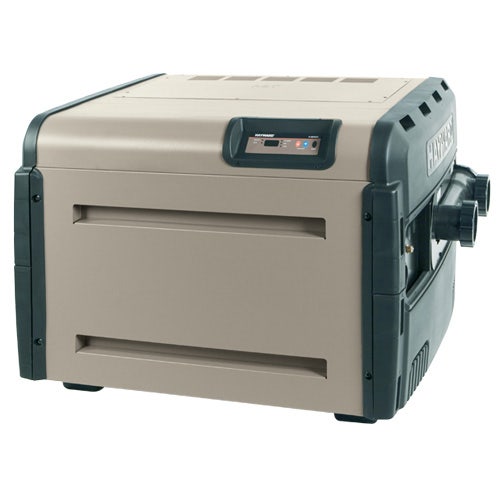

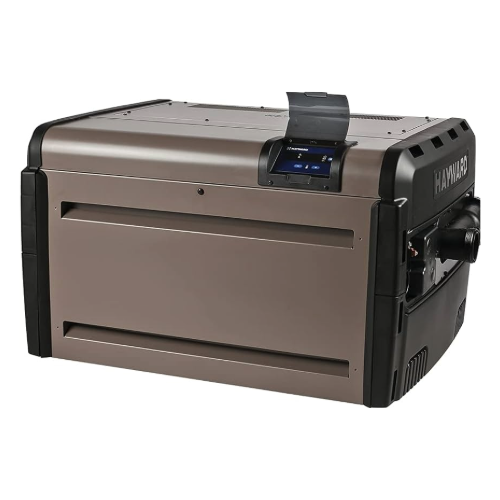

Hayward W3H250FDP Pool Heater | Universal H Series - 250K BTU, Propane, Low NOx
Hayward W3H250FDP Pool Heater | Universal H Series - 250K BTU, Propane, Low NOx
Transform your pool into a year-round oasis with the Hayward Universal H-Series Propane Gas Heater. Shasta Pool Supply provides the best online store for Hayward pool equipment. This W3H250FDP high-performance heater generates 250,000 BTU heating capacity.
Hayward W3H250FDP Pool Heater
The Universal H-Series heater combines energy efficiency and installation flexibility. Therefore, it offers ideal choice for both new construction and replacement pool equipment. Additionally, its excellent salt water and chemical corrosion resistance ensures long-lasting performance.

Collapsible content
Key Features
• 250,000 BTU heating capacity for rapid pool warming
• Low NOx emissions - meets strict clean air quality standards
• Standard cupro nickel heat exchanger for superior corrosion resistance
• Exclusive "Totally Managed" water flow system for faster, more efficient heating
• Patented header by-pass design reduces pump run-time and energy costs
• 2in x 2 1/2in CPVC union plumbing connections for easy installation and service
• Compact design: 24" x 25" x 29.5" for flexible placement options
Technical Specifications
- Fuel Type: Propane
- Heating Capacity: 250,000 BTU/hr
- Electrical: 60 Hz, 5.5 Amps, 15 Amp max fuse size
- Water Flow Rate: 25-125 GPM
- Weight: 165 lbs
Specs
- Part Number: W3H250FDP
- Manufacturer: Hayward
- Length: 29.5
- Width: 25.0
- Height: 24.0
- Voltage: 120/240
