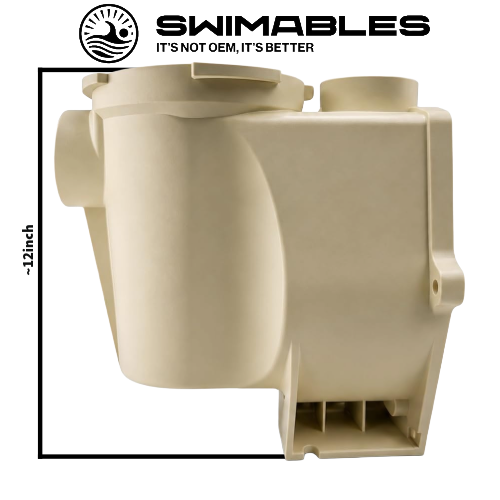

• Swimables SW-21-015 IntelliFlo Pump Housing | Dimensions
  • Swimables SW-90-199 IntelliFlo Pump Basket | Dimensions
1 6
Swimables

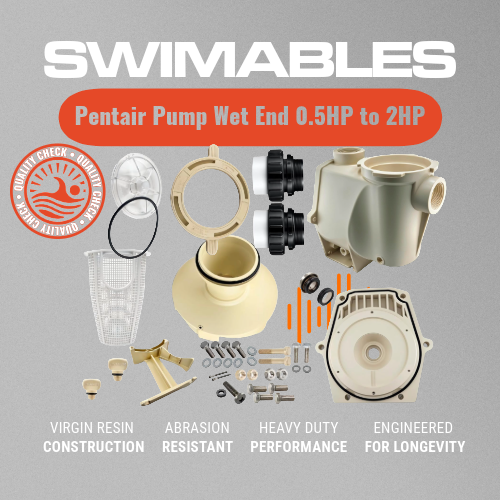

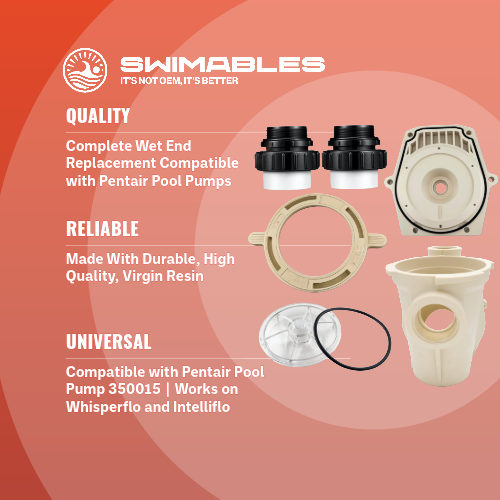

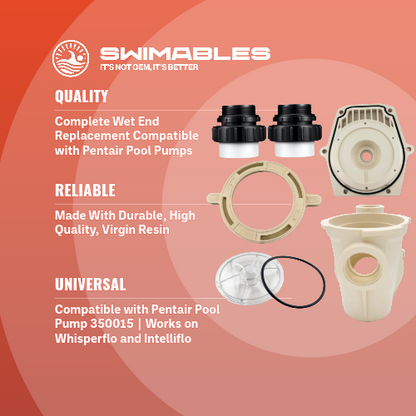

Pentair 357149 WhisperFlo 1HP-2HP Complete Wet End | Swimables SW-21-149

Pentair 357149 WhisperFlo 1HP-2HP Complete Wet End | Swimables SW-21-149

$251.95 USD
$251.95 USD
Sale Sold out
Shipping calculated at checkout.

Replace the entire wet end of your WhisperFlo pump with the Pentair 357149 IntelliFlo 1HP-2HP Complete Wet End made by Swimables. Has the price of OEM filter parts become too expensive for your budget? Then Shasta Pool Supply offers more affordable Swimables NON-OEM replacement parts. This Swimables SW-21-149 IntelliFlo 1HP-2HP Complete Wet End is a direct replacement for the Pentair part number.

What makes the Swimables SW-21-149 a great replacement for the Pentair 357149 IntelliFlo 1HP-2HP Complete Wet End?

Swimables manufactures this complete wet end with their exact specifications and quality assurance to match and replace the Pentair 357149 wet end assemblies. Also, it is compatible with Pentair WhisperFlo 1 HP to 2 HP pumps and the Pentair 011515 WhisperFlo pump. This Swimables complete wet end and its parts have been through rigorous testing for durability and abrasion resistance.

Swimables manufactured all of the parts in this complete wet end with 30% more material than the Pentair OEM version for added resilience. The volute, seal plate, locking ring, diffuser, and base are made with virgin PBT resin. The dimensions of the volute are 11-1/2 inches long and 11-1/4 inches high, with a port hole height of 9-3/8 inches.

Cheapest price online
Free shipping over $100
View full details
Lowest Authorized Dealer Price Shasta Pool Supply

Key Features

  • Replaces Pentair 357149 complete wet end for Pentair WhisperFlo pumps
  • Fits WhisperFlo 1 HP, 1.5 HP and 2 HP pumps and the Pentair 011515

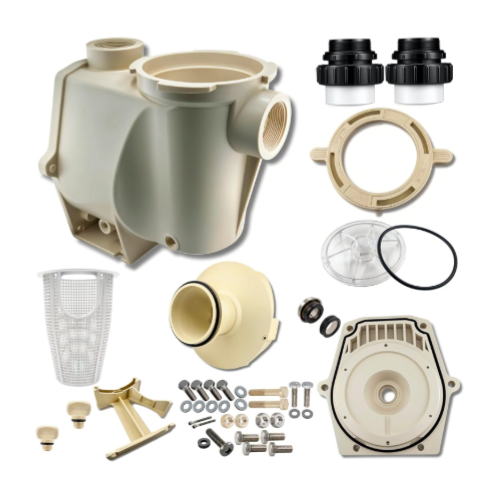

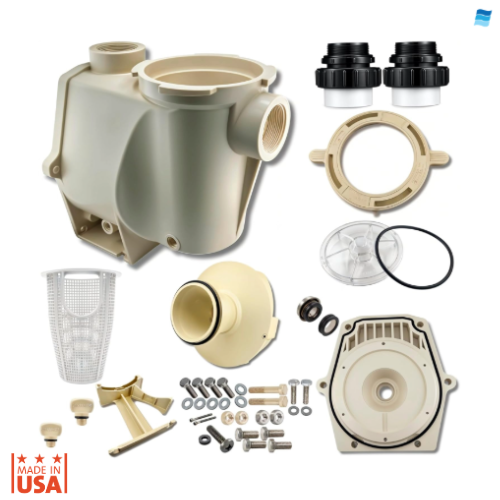

  • Includes pump housing 350015, pump basket 070387Z and seal plate with shaft seal
  • Includes foot insert and base, pot screws, hi-temp unions, locking ring 357199 and lid 357151
  • Seal plate contains 30% more material than the OEM part
  • Put through rigorous testing for durability and abrasion resistance

Technical Specifications

  • Replaces: Pentair 357149
  • Compatible pumps: Pentair WhisperFlo 1 HP, 1.5 HP, 2 HP; Pentair 011515
  • Swimables Diffuser and O-ring: Replaces 072927
  • Swimables Pump basket: Replaces 070387Z
  • Swimables Pump housing: Replaces 350015
  • Swimables Foot insert and base: Replaces 070929 and 070927
  • Swimables Locking ring: Replaces 357199
  • Swimables Lid with O-ring: Replaces 357151
  • Swimables Seal Plate and gasket: Replaces 074564
  • Swimables Drain Plugs: Replaces 071131
  • Swimables Shaft Seal: Replaces PS-1000
  • Also included: Replaces Hi-temp unions, and complete hardware kit
  • Swimbables Volute dimensions: Length 11-1/2 inches, height 11-1/4 inches, port hole height 9-3/8 inches
  • Item weight: 14 pounds
  • UPC: 810108821694

Specs

Shasta Pools Celebrating Sixty Years

How does the Swimables SW-21-149 compare to the Pentair 357149?

The Pentair 357149 only comes with the basket, 2 drain plugs with O-Rings, lid with O-Ring, pump housing, seal plate with gasket, mechanical seal, and locking ring. Furthermore, the Pentair 357149 is around the same price as the Swimables SW-21-149.

However, it does not include everything you need for a complete overhaul of your pump wet end. Which leads to having to buy extra parts that are needed.

The Swimables SW-21-149 Complete Wet End comes with everything except for the impeller because impellers are specific to the horsepower of your pump. Also, it comes with the same wet end parts as the Pentair 357149. It is also designed to work exclusively with WhisperFlo 1HP-2HP pumps only.

However, it has extra items including the foot insert and base, housing screws, hi-temp unions, diffuser, and the complete hardware kit. This makes the Swimables SW-21-149 complete wet end a more affordable option. Which includes extra parts that are usually needed when repairing a wet end while saving you money and extra trips.
