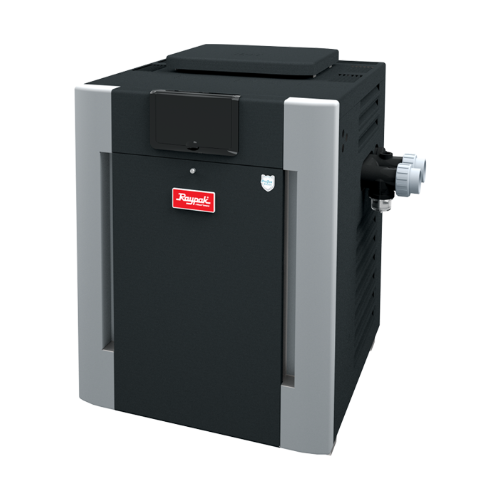

• Raypak 199K BTU Gas Pool Spa Heater
1 1
Raypak

Raypak 199K BTU Gas Pool Spa Heater | P-R206A-EN-C #50 009216

Raypak 199K BTU Gas Pool Spa Heater | P-R206A-EN-C #50 009216

$2,838.00 USD
$2,838.00 USD
Sale Sold out
Shipping calculated at checkout.

Create the ideal pool temperature any day of the year with the Raypak 199K BTU Gas Pool Spa Heater. Shasta Pool Supply provides an investment in endless comfort and relaxation. Specifically, the innovative ProTek Shield technology withstands abuse from both chlorinated and salt water pools.

Raypak 199K BTU Gas Pool Spa Heater

The digital controls offer precision at your fingertips. Therefore, the Gas Pool Heater allows you to set the perfect temperature for those crisp evening dips or warm morning swims. Additionally, Raypak's flexible installation options and low NOx certification delivers convenient and eco-friendly pool equipment.
What does this mean?
View full details
Raypak Heaters

Key Features

  • ProTek Shield: Protects the heat exchanger and extends the life of your heater.
  • Versatile Use: Suitable for both chlorinated and saltwater pools.
  • Flexible Installation: Easily integrates into existing systems or new setups.
  • Low NOx Certified: Provides a clean and safe burn that meet environmental standards.
  • Digital Controls: Features an intuitive microprocessor-controlled thermostat that offer precise temperature settings.

Technical Specifications

  • Input Rate: 199 MBTU/h
  • Thermal Efficiency: 82%
  • Energy Type: Gas
  • Venting: Category I
  • Voltage: 120/240VAC, 1-Phase
  • Max Water Flow: 100 GPM

Specs

  • Part Number: 009216
  • Manufacturer: Raypak
  • Length: 28.0
  • Width: 20.0
  • Height: 40.0
  • Voltage: 120/240

Is the Raypak 199K BTU Heater the Right Size for Your Pool?

Choosing the right heater size is about how you plan to use your pool. You want to figure out how quickly you want it heated and how your local climate impacts performance. Here’s how the Raypak 199K BTU heater fits best.

  • Small to medium pools (10,000–20,000 gallons)
  • Spas of all sizes (excellent performance)
  • Pools with solar covers (improves efficiency significantly)

How Fast Will This Heater Warm Your Pool?

How long will it take to heat my pool? The answer depends on your pool size and starting water temperature.

Heating Rate (Degrees Per Hour)

For a 199,000 BTU heater:

  • Small pools (10K–15K gallons): ~1.5°–2.5°F per hour
  • Medium pools (15K–20K gallons): ~1°–2°F per hour
  • With a solar cover: Can improve heating efficiency by 25–50%

Why You Can Trust Shasta Pools’ Recommendation

When choosing a pool heater, it helps to know the advice you’re getting comes from real-world experience.

  • 100,000+ Pools Built Since 1966
  • Shasta Pools brings decades of hands-on experience designing and servicing pools
  • Ranked #1 Pool Builder in Arizona by Pool & Spa News
  • The same types of heaters we recommend are the ones our technicians install and rely on in the field.
Dan Shasta Pool Supply Expert

From Dan Panfili, 25 Year Pool Product Specialist

Pro Tips from Shasta Experts

  • Sizing a heater is very important. There's a few variables.
  • Yes, gallons, they're very important to see how large of BTUs you might need for your heater.
  • However, surface area is more important because most of the heat loss goes through the surface of the pool, not the walls or floor.
  • So covering with a solar cover is a must, especially at night when you're not using it because heat will rise, you know, leave the pool, and then it's going to lower the temperature.
  • Some people think the larger the BTUs, the faster it heats. Not necessarily it's going to heat twice as fast, but it depends on a lot of other circumstances.
