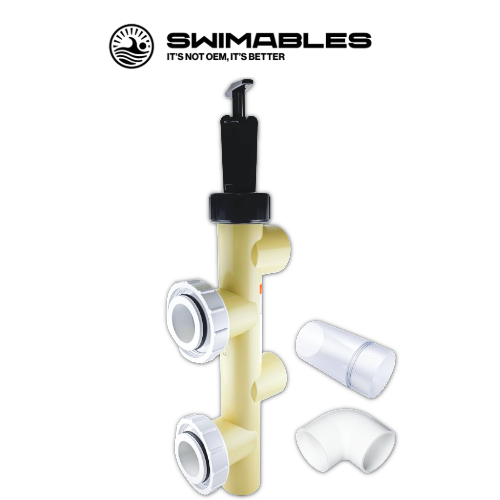

Swimables SW-26-064 Push Pull Backwash Valve | Replacement for Pentair 263064

Swimables SW-26-064 Push Pull Backwash Valve | Replacement for Pentair 263064

$79.95 USD
$79.95 USD
Sale Sold out
Shipping calculated at checkout.

Replace your broken Pentair 263064 backwash valve with the Swimables SW-26-064 Push Pull Backwash Valve. Tired of paying for OEM parts that are expensive? The Swimables SW-26-064 is a more affordable NON-OEM replacement for Pentair 2-inch slide valves with slip-type side port connections.

What makes the Swimables SW-26-064 Push Pull Backwash Valve a great replacement for the Pentair OEM 263064 Backwash Valve?

Swimables manufactures it as a direct replacement for Pentair part numbers 263064 and 261165. Also, Swimables makes this valve with thick, and heavy-duty plastic that matches the Pentair 263064 OEM valve quality. This Swimables SW-26-064 was built using Swimables exact specifications and testing for Pentair compatibilty.

Swimables manufactured the SW-26-064 to match the Pentair 263064 optimizations for water flow. These optimizations help prevent clogs and keep your filtration system running efficiently.

Furthermore, this backwash valve assembly includes a 2" elbow fitting as most installs or reinstalls require one. Also, included with the assembly is a sight glass fitting that shows water flow to the filter.

Cheapest price online
Free shipping over $100
View full details
Lowest Authorized Dealer Price Shasta Pool Supply

Key Features

  • Direct replacement for part numbers 263064 and 261165
  • 2 inch slide valve with slip-type port connections
  • Thick, heavy duty plastic designed to last longer than the OEM valve
  • Flow-optimized design helps prevent clogs and supports efficient pump operation
  • Includes a 2 inch elbow fitting to help during installation
  • Includes a sight glass fitting that shows how water is flowing

Compatible With:

  • Model: FNS, Quad, Nautilus
  • Associated Vendor Model Numbers: 180006, 180007, 180008, 180009, FNSP24, FNSP36, FNSP48, FNSP60, QUAD60, QUAD80, QUAD100
  • Model: Triton II
  • Model TR60, TR100, TR140, TR100C, and TR140C Sand filters

When It Is Compatible Your Triton II filter must meet all of the following:

  • If your Triton II has a Side‑mount plumbing configuration
  • If the 2‑inch plumbing matches up with the old valve’s slip connections
  • If the centerline spacing is 7.5‑inches between ports (standard for Pentair 263064‑style valves)
  • If the system was originally equipped with a 263064 or 261165 push‑pull (slide) valve, and not a multiport valve.

Technical Specifications

  • Valve type: Slide valve
  • Port size: 2 inches
  • Inlet connection: Slip, 2 inches
  • Outlet connection: Sweat, 2 inches
  • Connector type: Slip
  • Exterior finish: Plastic
  • Item dimensions: 22 x 3 x 12 inches
  • Item weight: 3 pounds
  • Replaces part numbers: 263064, 261165
  • Commonly used on: FNS, Quad, Nautilus
  • Included: 2 inch elbow fitting, sight glass fitting
  • UPC: 810108822929
